MOPA LASER MARKING MACHINE

Versatile Color Marking for Metal Components

Laser Marking Machine

Heading Separator

Adjustable pulse, colorful marking, fine engraving for metal & coated materials.

  •

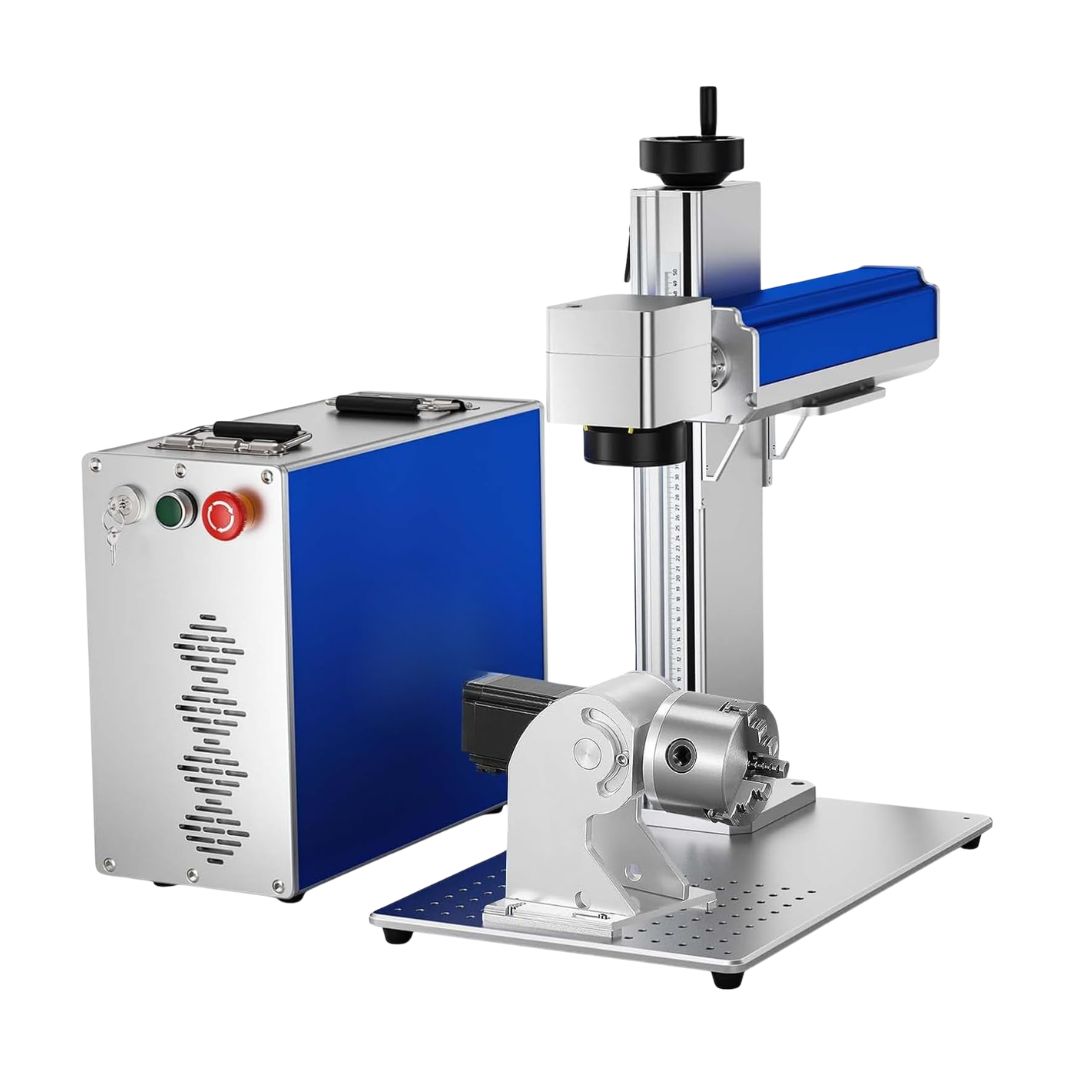

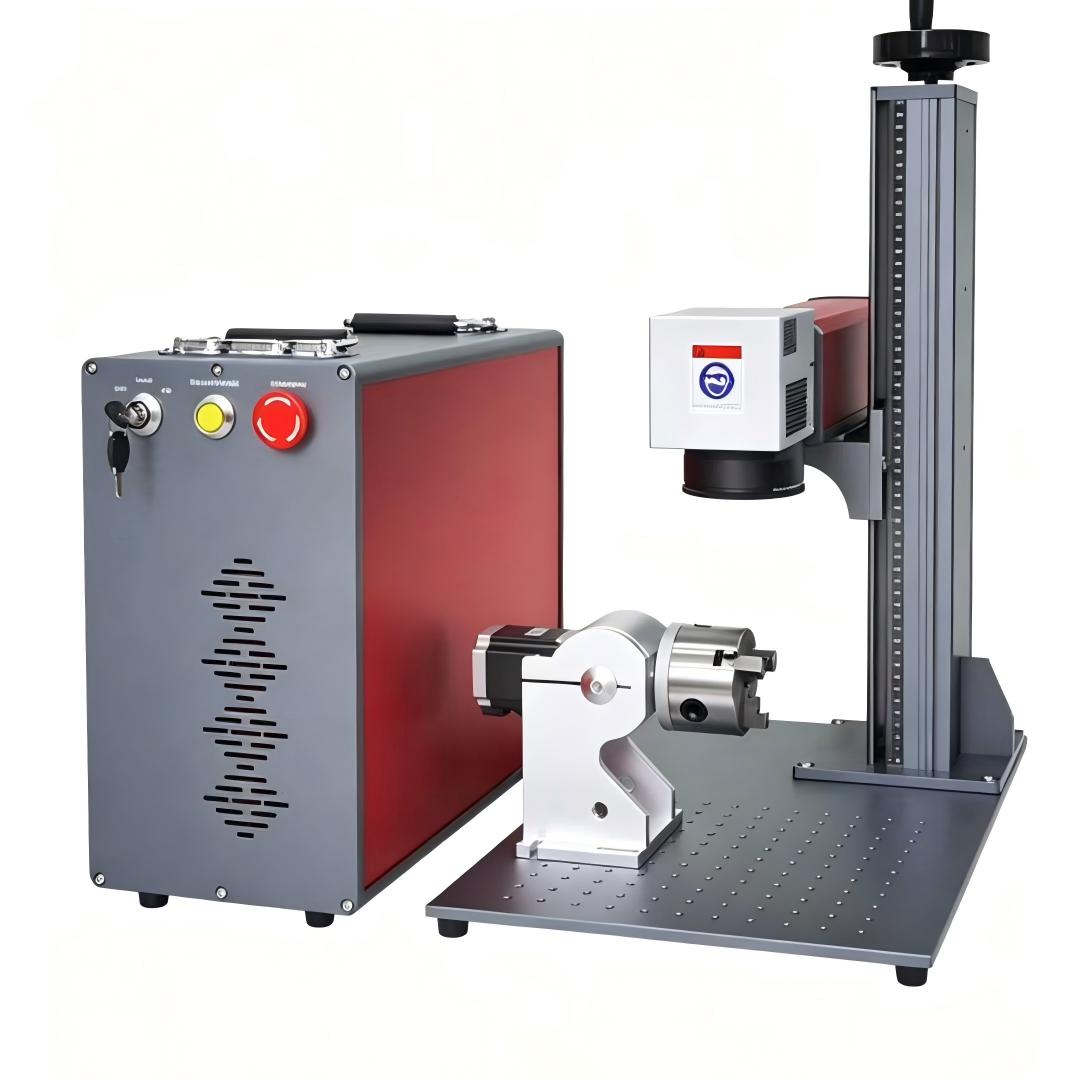

    MOPA Laser Marking Machine

    Price:

    $3,999.00

  •
    CO2 Laser Marking Machine

    Price:

    $2,999.00

  •

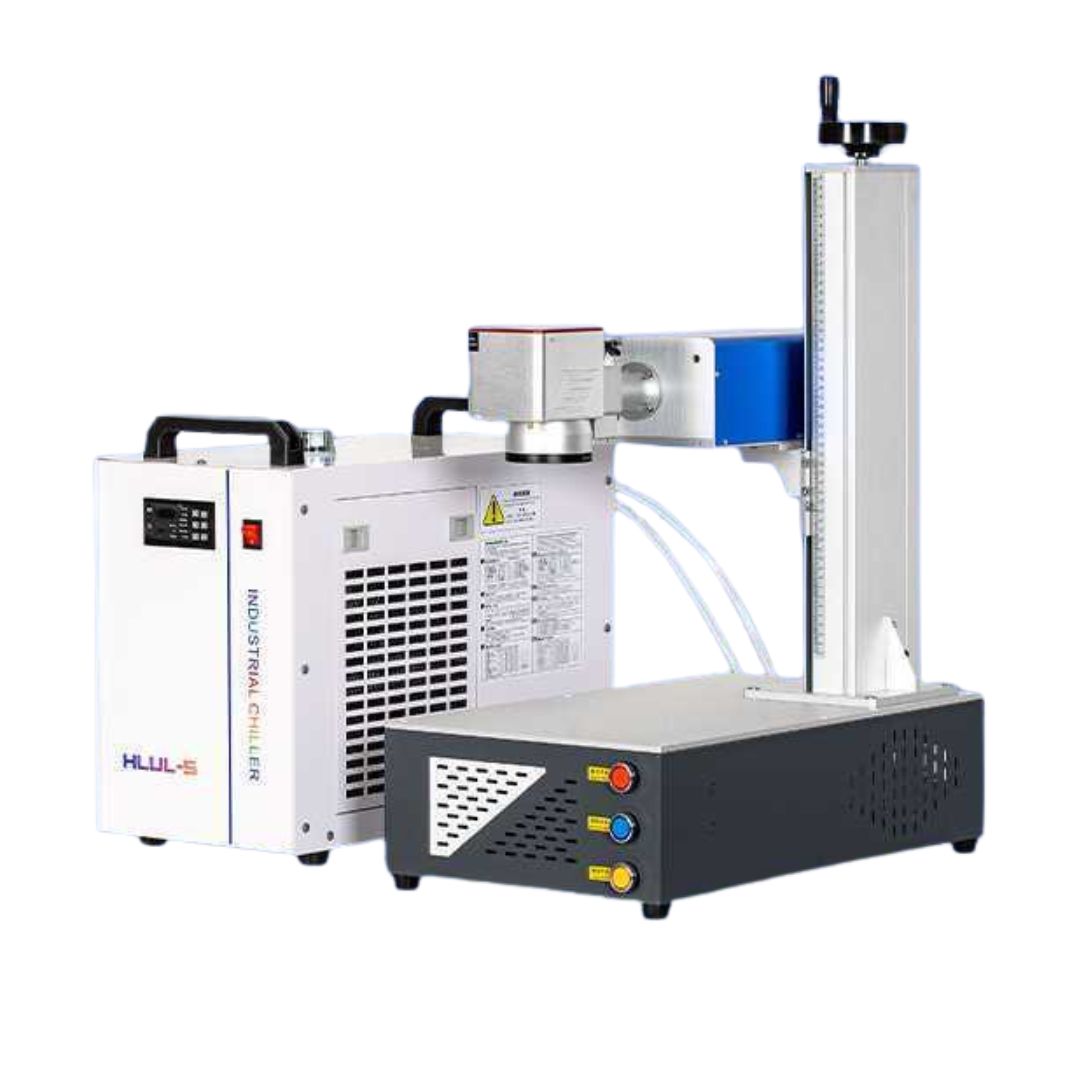

    UV Laser Marking Machine

    Price:

    $2,999.00

  •

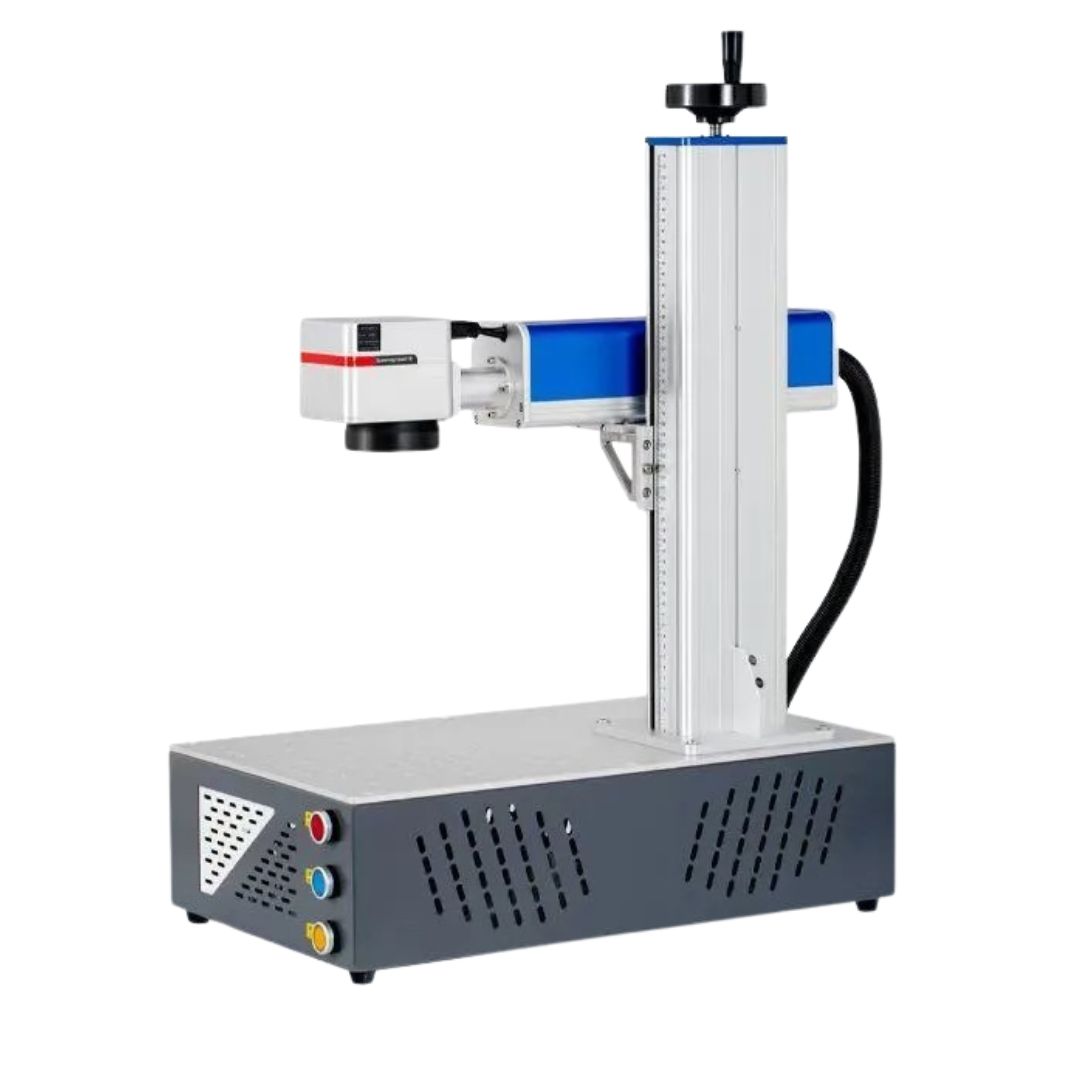

    Fiber Laser Marking Machine

    Price:

    $1,999.00

Explore Laser Marking Applications

Fiber For Metals：Stainless steel, Aluminum, Copper, Brass, Iron, Precious metals (Gold, Silver), Alloy, Titanium alloy

UV For Plastics：ABS, PVC, PP, PE, PC, Nylon, Epoxy resin, Acrylic, Silicone, POM, PET, PU, TPU, PS

CO2 For Non‑metals：Wood, Leather, Paper, Glass, Ceramic, Stone, Rubber, Bamboo, Plastic film, Shell, Jade

Industrial laser marking machines: 4 technologies

At Ruige, we acknowledge that each manufacturing process entails distinct marking and traceability requirements. Drawing on over four decades of industrial marking expertise, we deliver solutions for substrates from metal to sensitive plastics across healthcare, aerospace and numerous other industries. Submit your application requirements, and we will engineer a bespoke solution.

  • Fiber Laser
    Fiber laser marking systems use a wavelength in the infrared range of 1064nm. It is designed to mark metals and most metal alloys, also suitable for certain engineered plastics.

  • CO2 Laser
    CO2 laser marking systems use a wavelength in the infrared range of 10.6um. It is designed to mark organic materials such as leather, paper, wood, plastics, and even glass.

  • UV Laser
    UV laser marking systems use a wavelength in the ultraviolet range of 355nm. It is designed to mark heat-sensitive materials such as delicate plastics, glass, ceramics, electronic components and thin films.

  • MOPA Laser
    A fiber laser source, but with a variable pulse duration. The MOPA excels in material adaptability and caters to most industrial applications with contrasted and permanent markings.

    Ready to explore industrial laser marking machines that work for your business? Contact us today, and our dedicated team will help you specify the ideal industrial identification marking solution.

Laser Fiber CO2 UV MOPA
Model F20/F30/F50 C30/C40/C60 U5/U10 M60/M100
Laser Source             Raycus 1064nm DAVI 10600nm CRS 355nm JPT 1064nm
Power 20W/30W/50W 30W/40W/60W 5W/10W 60W/100W
Marking Area 200*200mm 200*200mm 200*200mm 200*200mm
Marking speed Up to 4000 mm/s Up to 4000 mm/s Up to 4000 mm/s Up to 3000 mm/s
Laser safety classification Class 4 Class 4 Class 4 Class 4
Rated voltage 100 - 240 V AC 100 - 240 V AC 100 - 240 V AC 100 - 240 V AC
Humidity level 10-85% 10-85% 10-85% 10-85%
Operating Temperature 10 to 40°C 10 to 40°C 15 to 35°C 10 to 40°C
Machine dimensions (L x W x H) 307 x 138 x 203 mm 458 x 130 x 135 mm 458 x 130 x 135 mm 458 x 130 x 135 mm
Package Weight 40KG 40KG 60KG 40KG
Cooling System Air cooling Air cooling Water cooling Air cooling
Operation System EZCAD2 EZCAD2 EZCAD2 EZCAD2
Marking Materials Metal,Iron,Stainless Steel,Copper,Silver, Gold Metal,Iron,Stainless Steel,Copper,Silver, Gold Glass,Plastic,

PVC,Leather,Rubber

 Wood,Carton box
